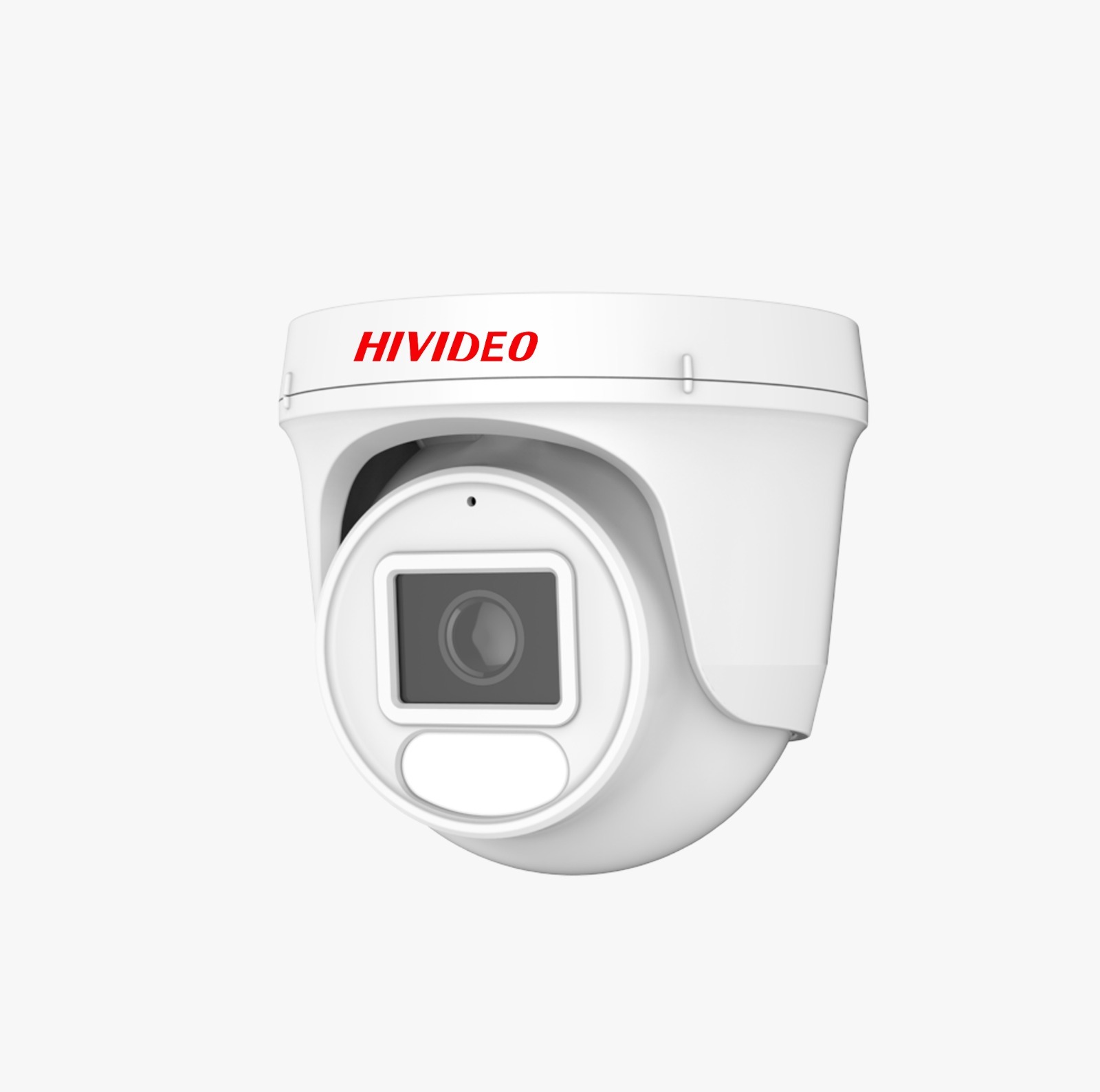

Model NO. HI‐99CIP4K‐WS |
|
|
Camera SPEC |
|
|
Pixels |
8.0 Mega Pixel |
|
Image Sensor |
Sony IMX415 |
|
Main processor |
AX620U |
|
Effective Pixels |
3840*2160P |
|
TV System |
PAL/NTSC |
|
Main stream |
4K(3840*2160)/5MP(2880*1616)/4MP(2560*1440)/3MP(2304*1296)/2MP(1920*1080) |
|
Sub‐stream |
720P(1280*720)/448P(800*448)/D1(704*576)/360P(640*360 ) |
|
Electronic Shutter Time |
Auto: PAL 1/1‐1/10000Sec; NTSC 1/1‐1/10000Sec |
|
Usable Illumination |
0.01Lux |
|
S/N Ratio |
≥52dB |
|
Video Output |
Network |
|
Network |
|
|
Ethernet |
RJ‐45 (10/100M) |
|
Protocol |
ONVIF,P2P,CGI,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP,DNS,FTP,IP Filter |
|
Protocol optional |
ONVIF protocol/Private protocol/CGI |
|
P2P |
Support |
|
POE |
Support |
|
Video Delay |
0.3S (Within the Lan) |
|
Smart Phone |
iPhone, iPad, Android, Android Pad |
|
Frames Per Second |
4K 20FPS,5MP 30FPS,4MP30FPS |
|
Camera Features |
|
|
Day/Night |
when people come in Monitor Area , it is warm light full color at night ,when people leave , will be infrared B/W at night |
|
Compression |
H.264/H.265 |
|
Image Config |
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control) |
|
Humanoid detection |
Support humanoid detection function, can detect humanoid shape for intelligent alarm. |
|
Privacy Masking |
3 Rectangular Zone |
|
DWDR / WDR |
DWDR |
|
Recording Mode |
NVR/NAS/CMS/Web |
|
Language |
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German,Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian |
|
Audio |
Support audio input audio output, support power amplifier function; Support G711U, G711A encoding formats |
|
Alarm |
Support alarm input, alarm output function |
|
Lens |
|
|
Focus Length |
F1.6/3.6mm |
|
Focus Control |
Fixed |
|
Lens Type |
Fixed |
|
Night Vision |
|
|
Infrared LED |
3PCS Smart dual‐chip LED |
|
Infrared Distance |
30M |
|
IR Status |
Under 10 Lux By CDS |
|
IR Power On |
CDS Auto Control |
|
General |
|
|
Housing |
Metal |
|
Bracket |
YES |
|
IR Cut Filter |
YES |
|
Operation Temperature |
‐30°C ~ +80°C RH95% Max |
|
Storage Temperature |
‐40°C ~ +90°C RH95% Max |
|
Power Source |
DC12V±10%, 2A |
|
Dimension |
120*110mm |
|
Weight |
0.6kg |
